Programming/Spring Boot

[Spring Boot] MVC 패턴 (vscode)

다음 코드들이 만들어진 폴더의 위치는 다음과 같다



  1. 컨트롤러 생성. (HelloController.java)
    • 코드 해석
      • @GetMapping("hello-mvc")
        : get 방식으로 hello-mvc라는 값이 넘어온다면 아래의 코드를 실행시키겠다.

      • public String helloMvc(@RequestParam("name") String name, Model model)
        : 함수 helloMvc 를 선언할 것이며 해당 함수에서는 파라미터로 얻은 name 값을 name이라는 문자열 변수에 담을 것이며model이라는 변수로 Model을 사용하겠다.

      • model.addAttribute("name", name);
        : 모델 안에 속성을 추가하겠다. name이라는 속성에 방금 얻어온 파라미터 name 값을 넣어주겠다.

      • return "hello-template";
        : 위에서 선언한 model을 사용할 수 있는 템플릿 hello-template 파일로 반환하겠다.

  2. package hello.hellospring.controller; import org.springframework.stereotype.Controller; import org.springframework.ui.Model; import org.springframework.web.bind.annotation.GetMapping; import org.springframework.web.bind.annotation.RequestParam; @Controller public class HelloController { @GetMapping("hello-mvc") public String helloMvc(@RequestParam("name") String name, Model model) { model.addAttribute("name", name); return "hello-template"; } }
  3. 템플릿 생성 (hello-template.html)
    • 코드 해석
      • <html xmlns:th:"http://www.thymleaf.org">
        : html을 사용할 것이며 다음 html에서 thymleaf를 사용하겠습니다.

      • <p th:text="hello + ${name} "> hello! empty </p>
        : p 태그를 사용할 것이며 해당 태그 안의 텍스트는 "hello + (컨트롤러에서 보낸 모델의 속성 name의 값)이며
        만약 해당 html을 서버를 통하지 않고 그냥 열어본다면 hello! empty라는 텍스트를 반환하겠습니다.

  4. <html xmlns:th="http://wwww.thymleaf.org"> <body> <p th:text="'hello '+ ${name}"> hello! empty </p> </body> </html>​
  5. 동작 확인
    • 위처럼 코드를 작성하고 url을 입력한다면 다음과 같은 결과를 얻을 수 있다.
    • 파라미터 name 값을 사용한다고 컨트롤러에 명시했기 때문에 쿼리스트링 값으로 name을 선언해줘야 한다

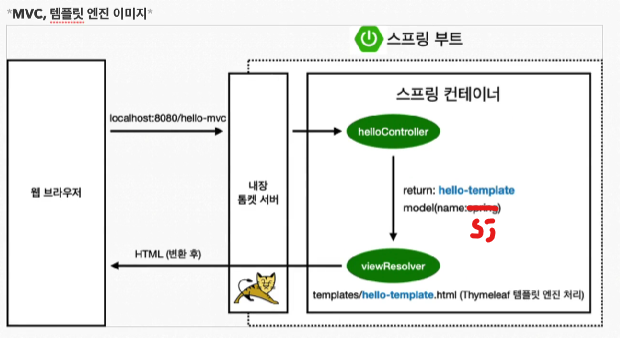

  6. 동작 원리




트러블 슈팅



  • 파라미터를 선언하지 않는다면

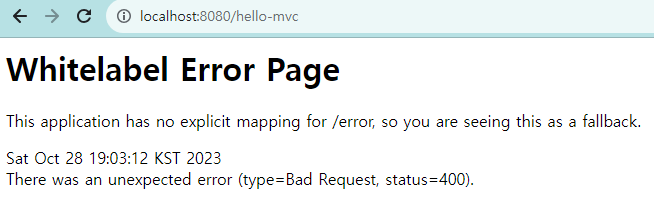

    • 다음과 같은 에러 메시지와 함께 원하는 view를 볼 수 없다


  • 파라미터를 선언하지 않았을 때에도 에러가 발생하지 않게 하려면?
    • 다음과 같이 @RequestParam의 값을 바꿔주면 된다
          @GetMapping("hello-mvc")
          public String helloMvc(@RequestParam(value = "name", required = false) String name, Model model) {
              model.addAttribute("name", name);
              return "hello-template";
          }​
    • 이전과 같이 @RequestParam("name")이라고 입력한 것은 다음과 같은 의미를 가지고 있다.

      @RequestParam(value = "name", required = true)
      : 해석) 나는 파라미터 name의 값을 받아올 것이며, 해당 파라미터는 필수이다.

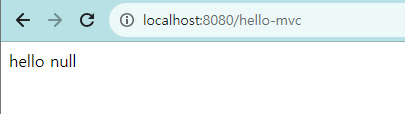

    • 에러가 발생하지 않는 것을 확인할 수 있다
